Toyota GT86 Weld In Gearbox Tunnel

Vital Fabrication Toyota GT86 Weld-In Transmission Tunnels

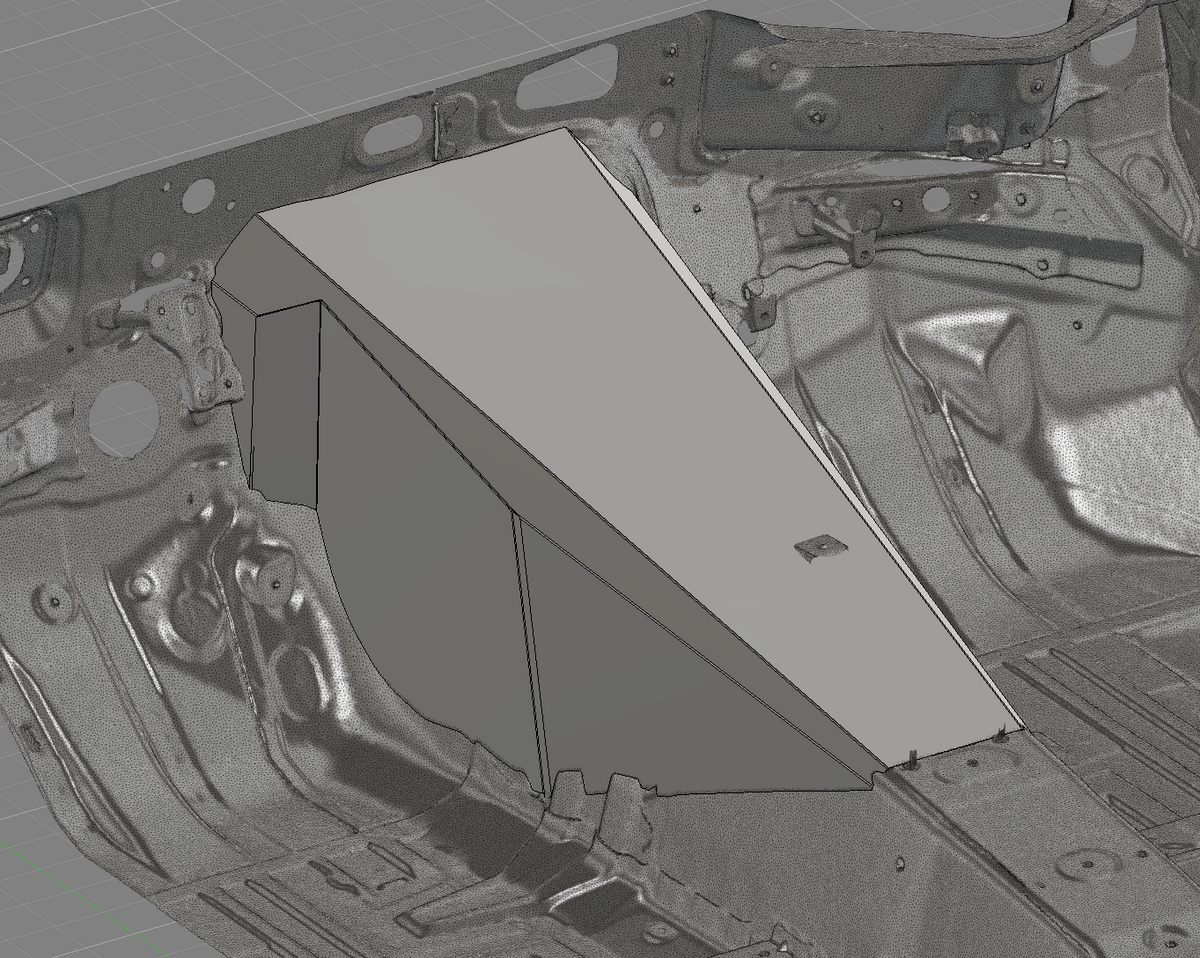

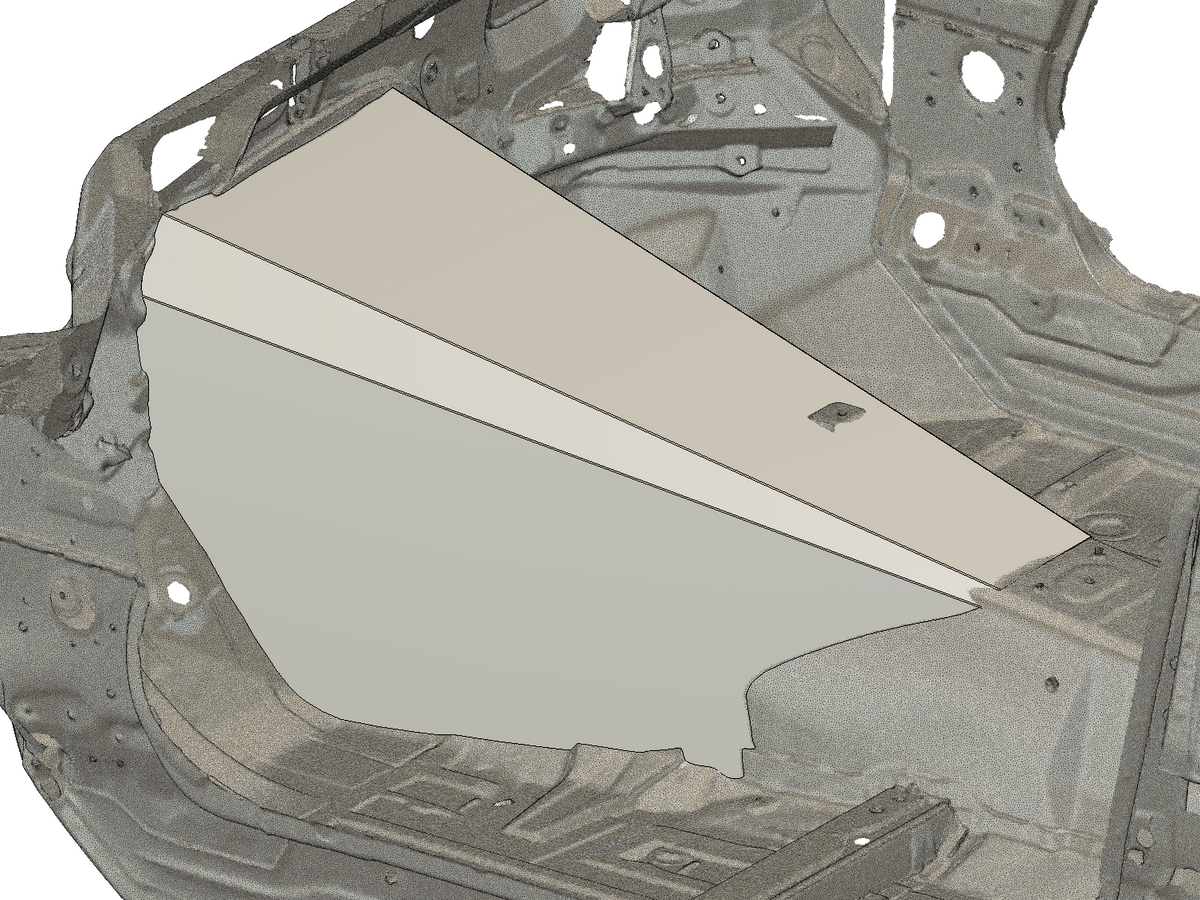

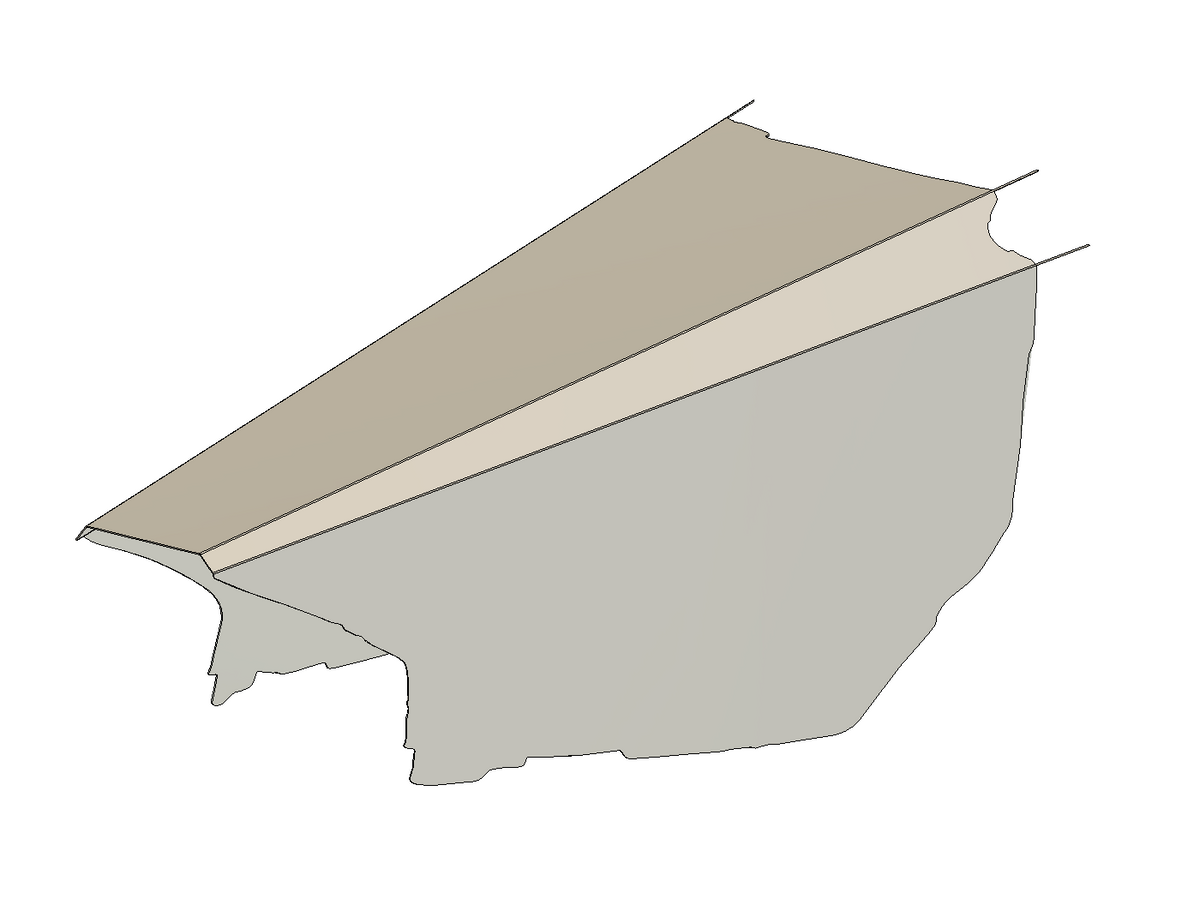

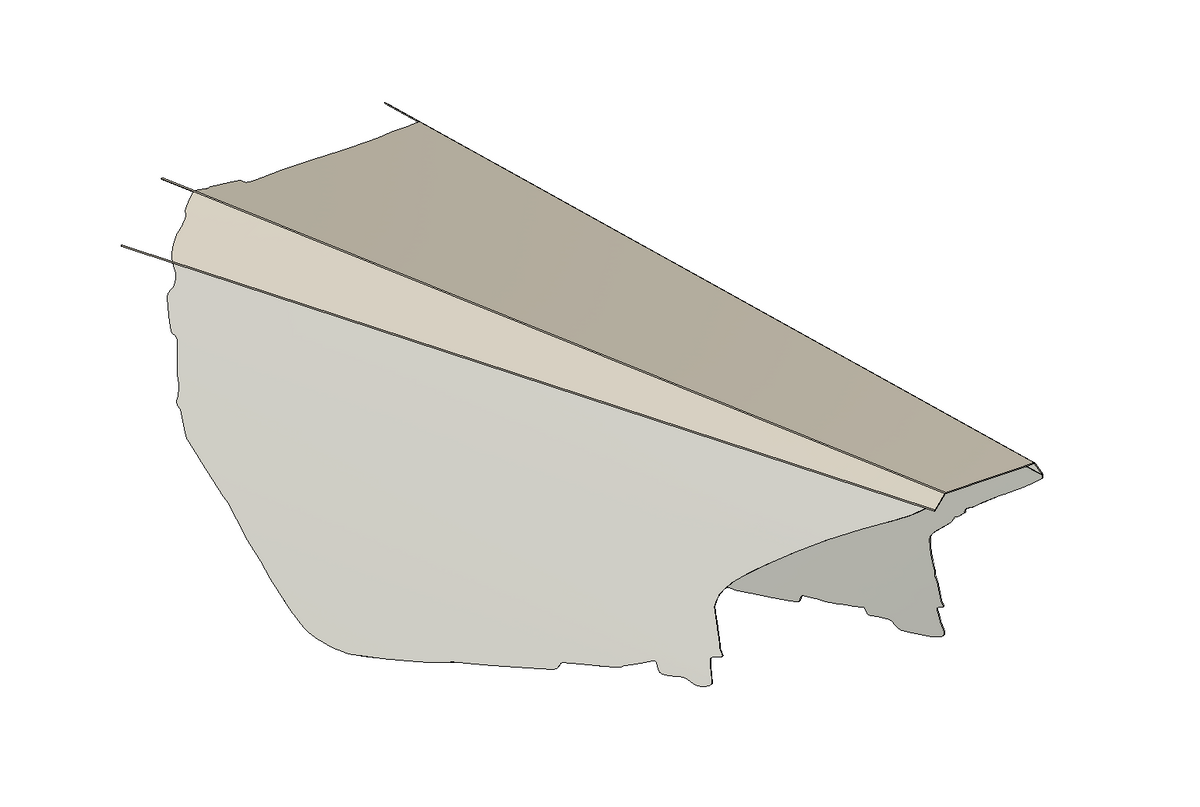

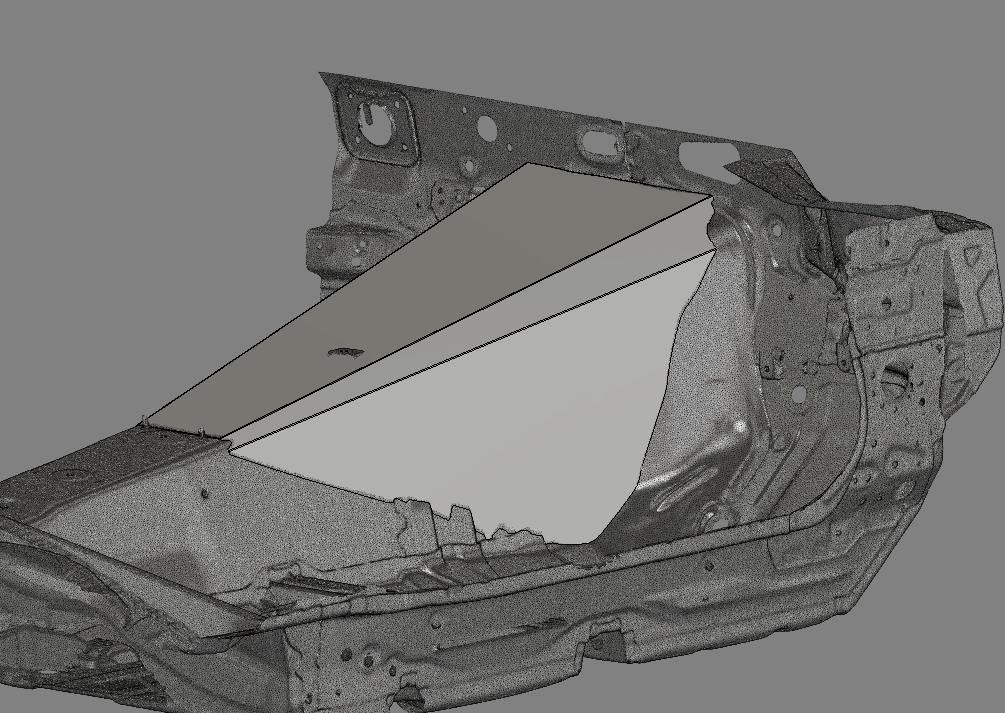

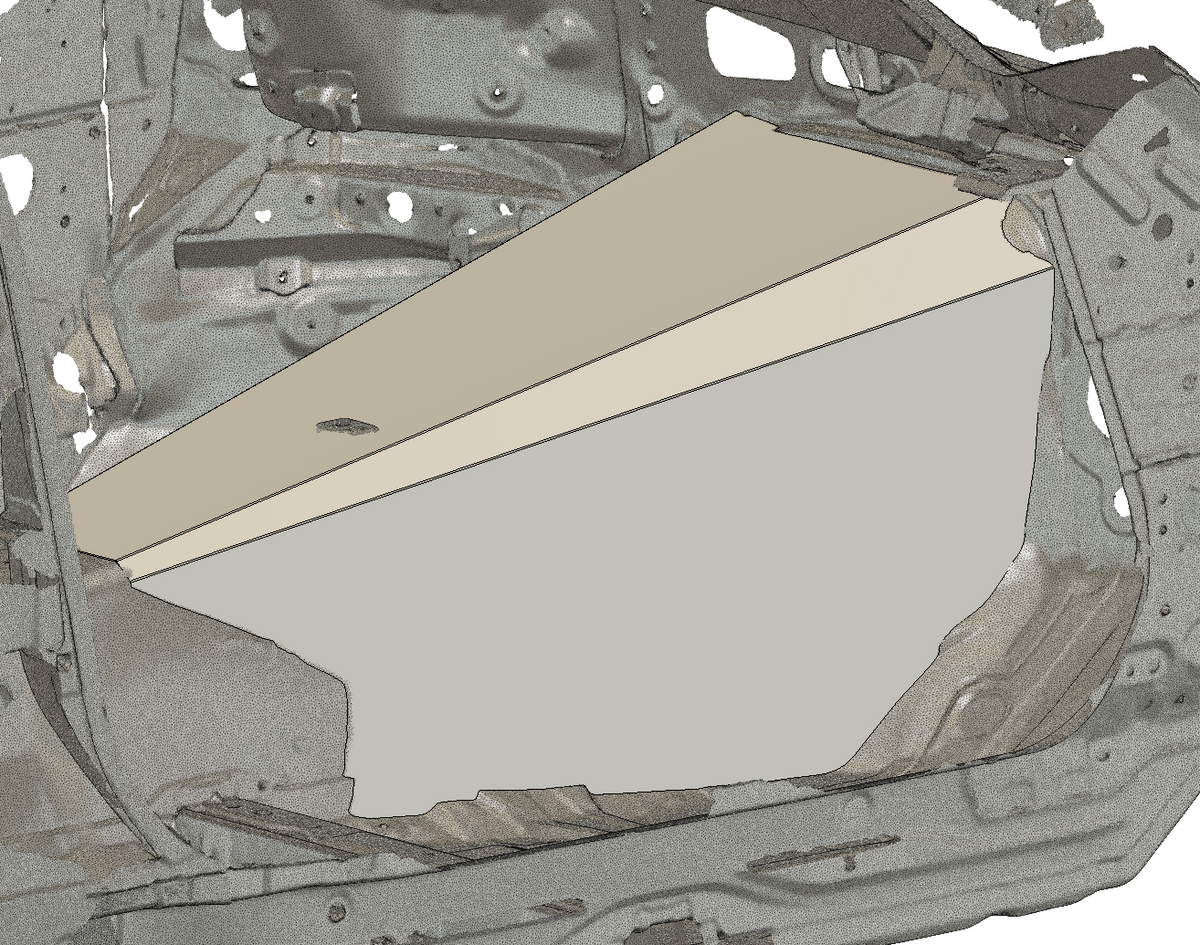

Vital Fabrication tunnels are designed to make it easier then ever before to upgrade your car to the next level. Designed using 3D scanning and CAD modeling, this weld-in transmission tunnel offers a precise fit for your GT86. Perfect for transmission swaps and access for maintenance.

• 3D Scanned for Accuracy

• CAD designed for exceptional fitment

• made from 1.2mm cr4 Steel

• increased space for transmission, plumbing and maintenance

• tunnel comes pre bent ready to be installed

3 varient options

• front tunnel

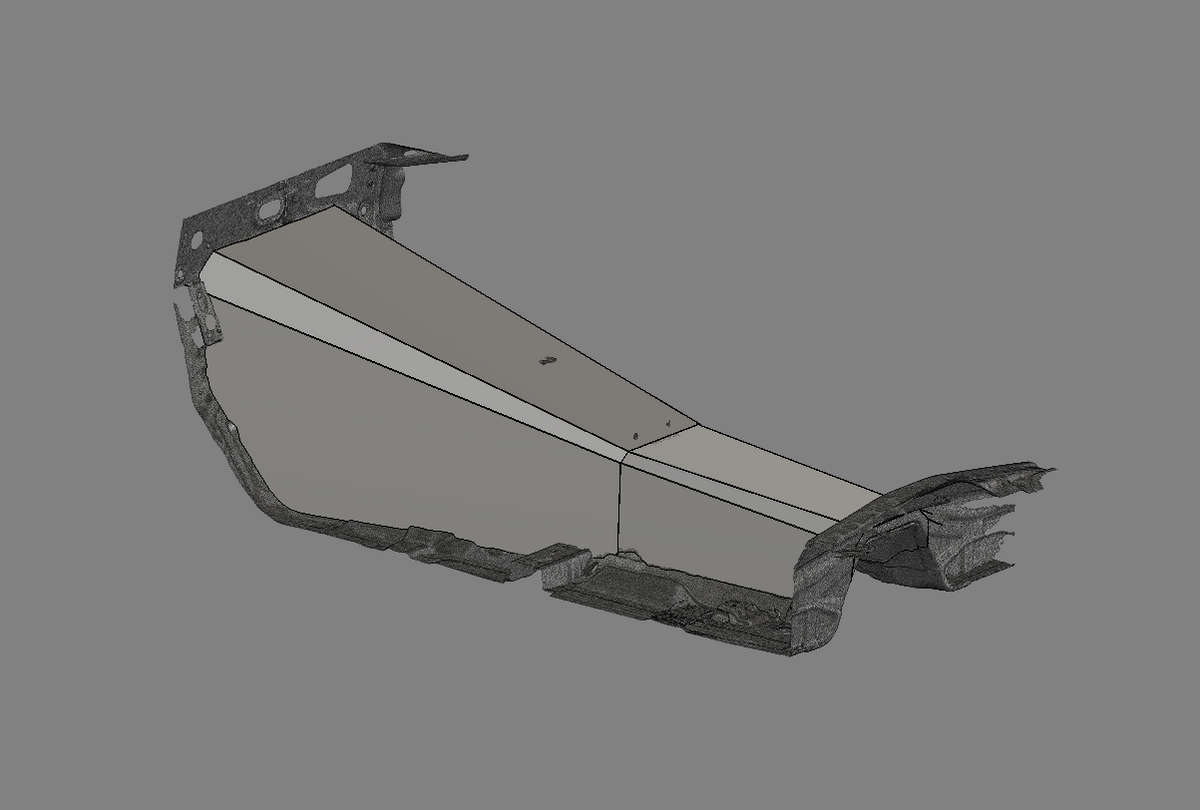

• front xl tunnel + rear addition
• front xl tunnel + rear + exhaust tunnel (left hand side) or (right hand side)

Installation

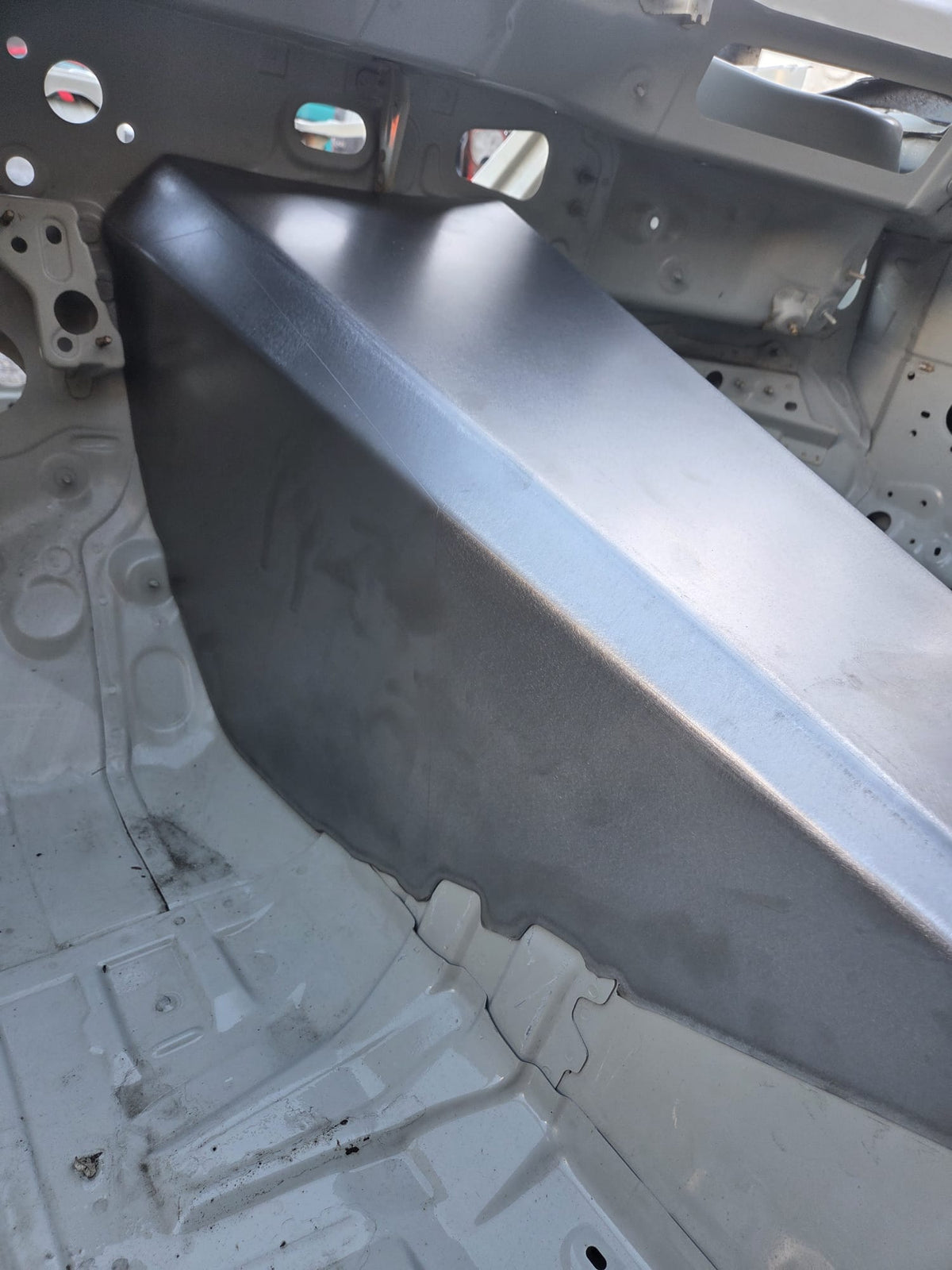

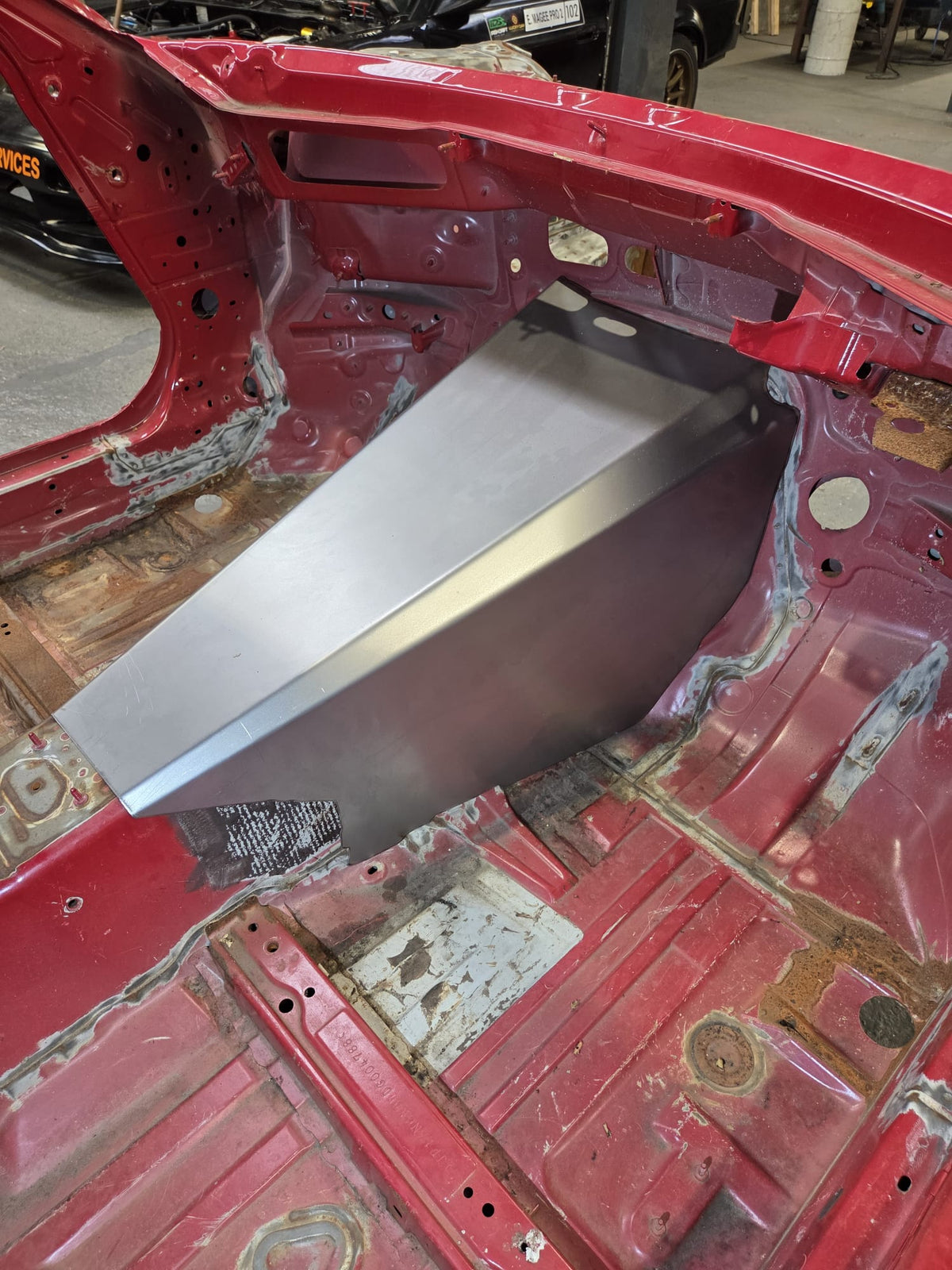

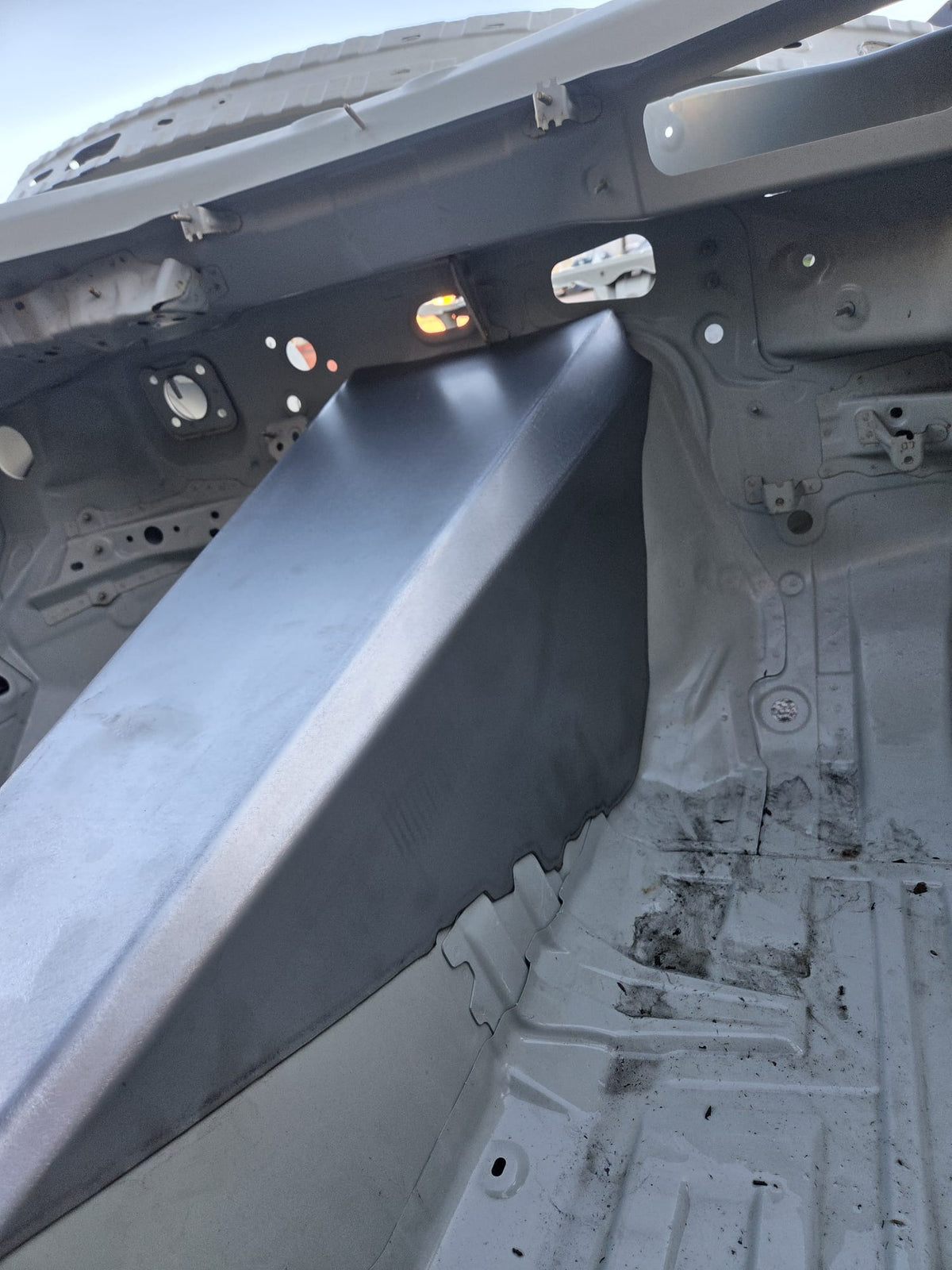

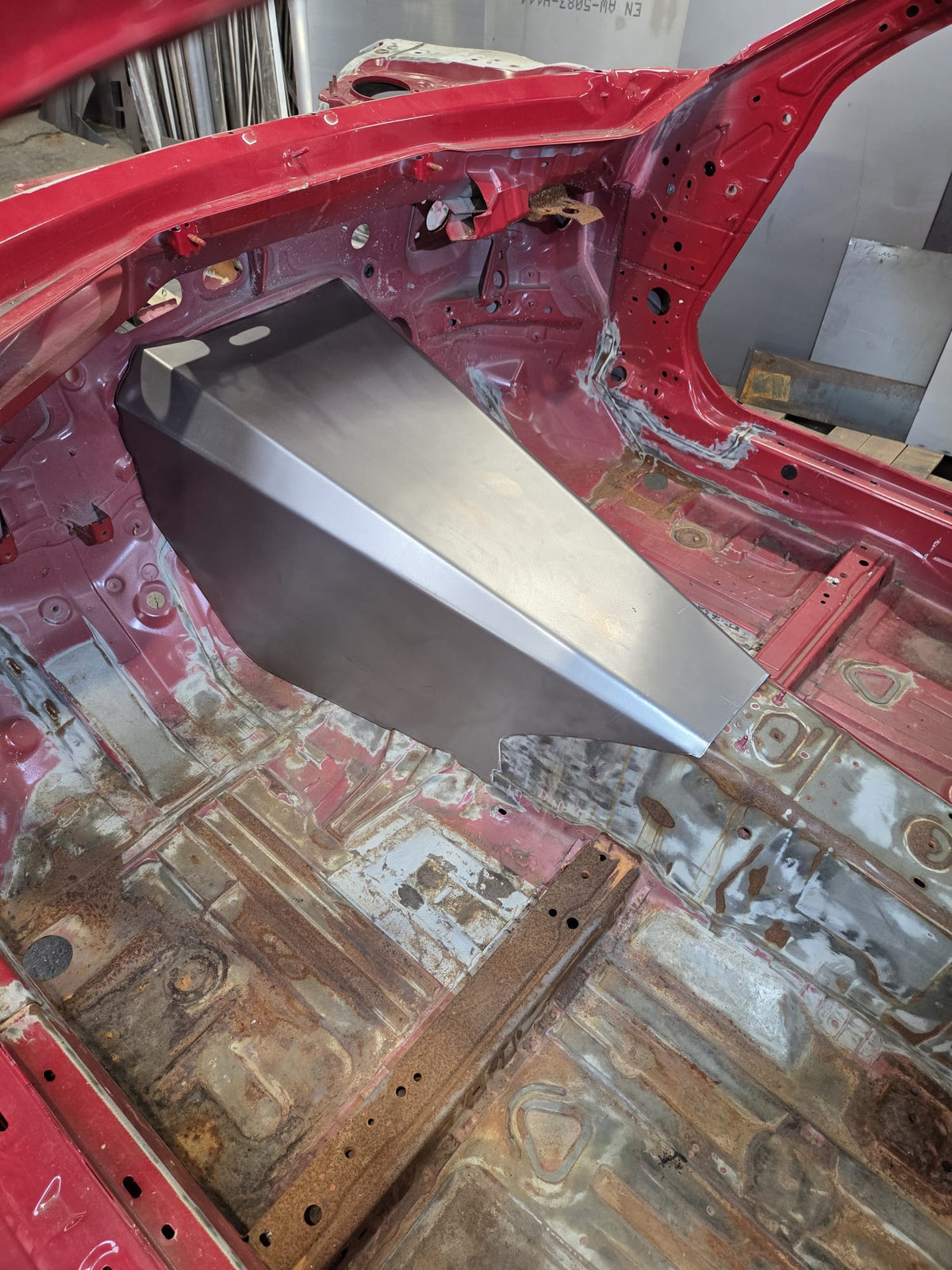

VF tunnels are design to be used as a cutting template, simply remove any OEM brackets, place your new part over the OEM tunnel and trace out your cut line with a marker, we recommend to cut at least 10mm inside the line to allow for any warping during welding. once welded jump under the car and remove any excess material up to your new tunnel.

• front tunnel only - requires all factory brackets on oem tunnel to be removed before VF tunnel can be placed for marking
• front xl + rear addition - requires all factory bracket on oem tunnel to be removed before VF tunnel can be placed for marking
• exhaust tunnel - requires oem seat rails and mounts to be removed before VF exhaust tunnel can be placed for marking
