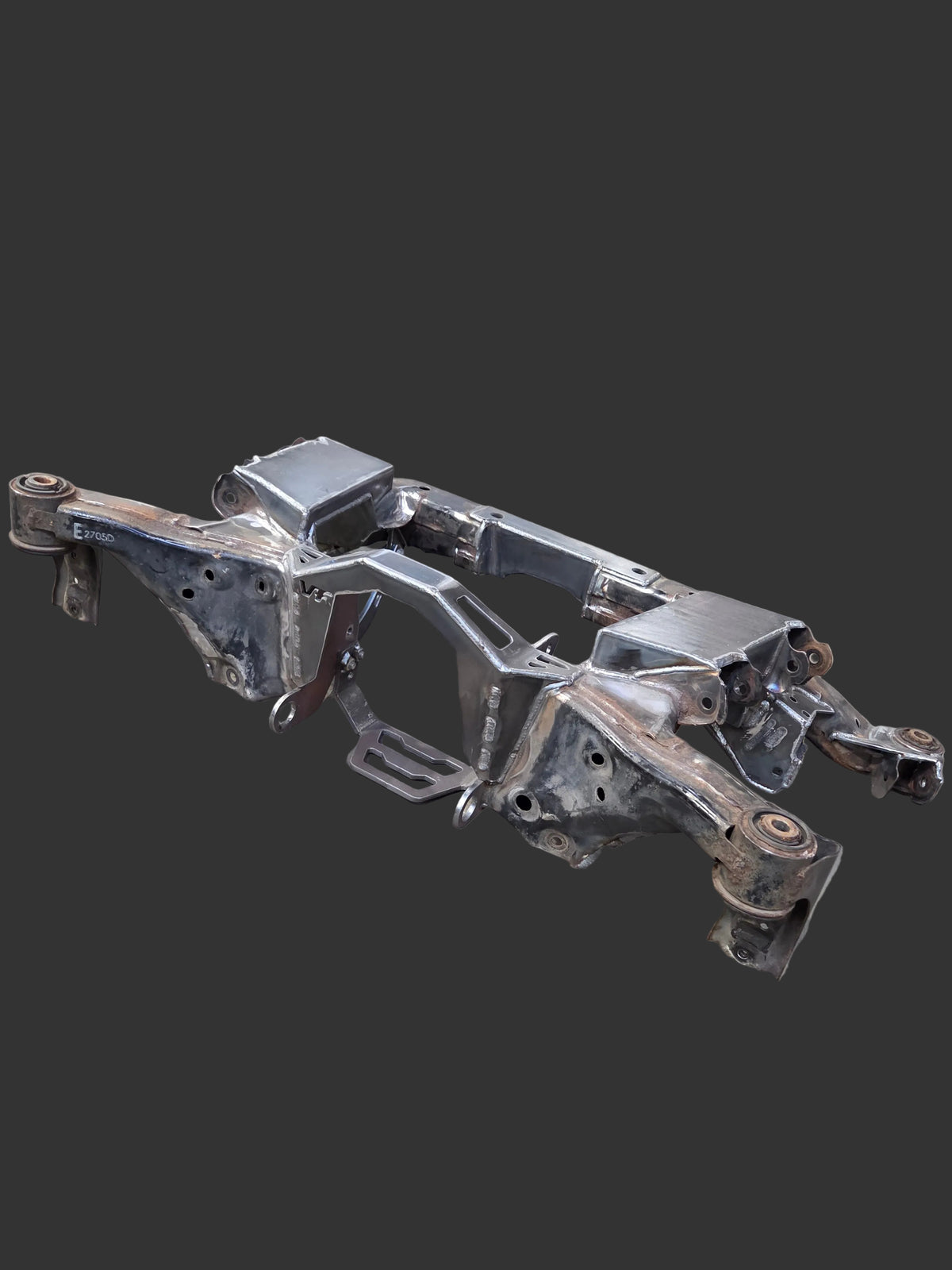

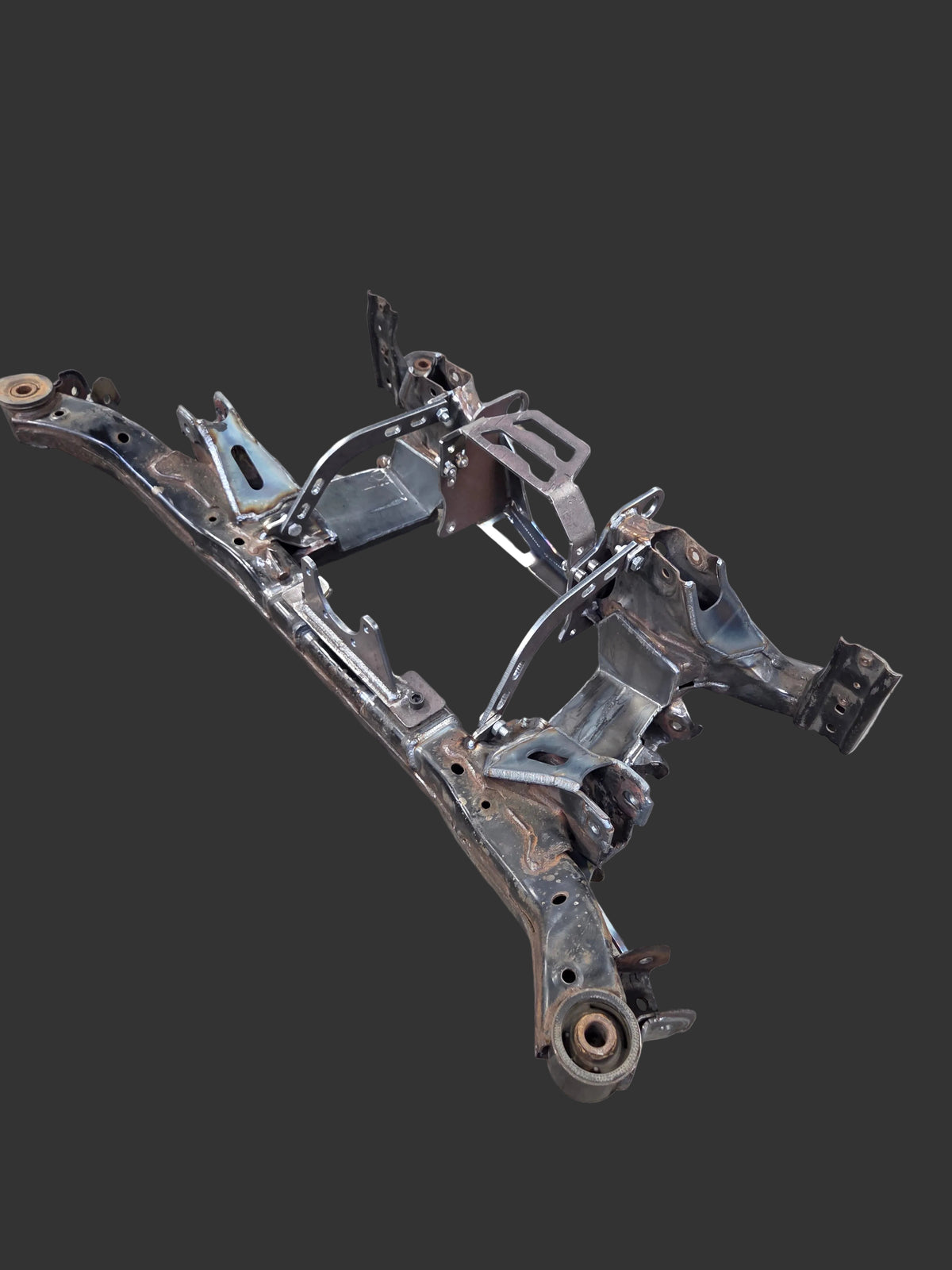

GT86/FRS/BRZ quick change rear subframe kit

GT86 / FRS / BRZ Quick Change Rear Subframe Mount Kit (DIY)

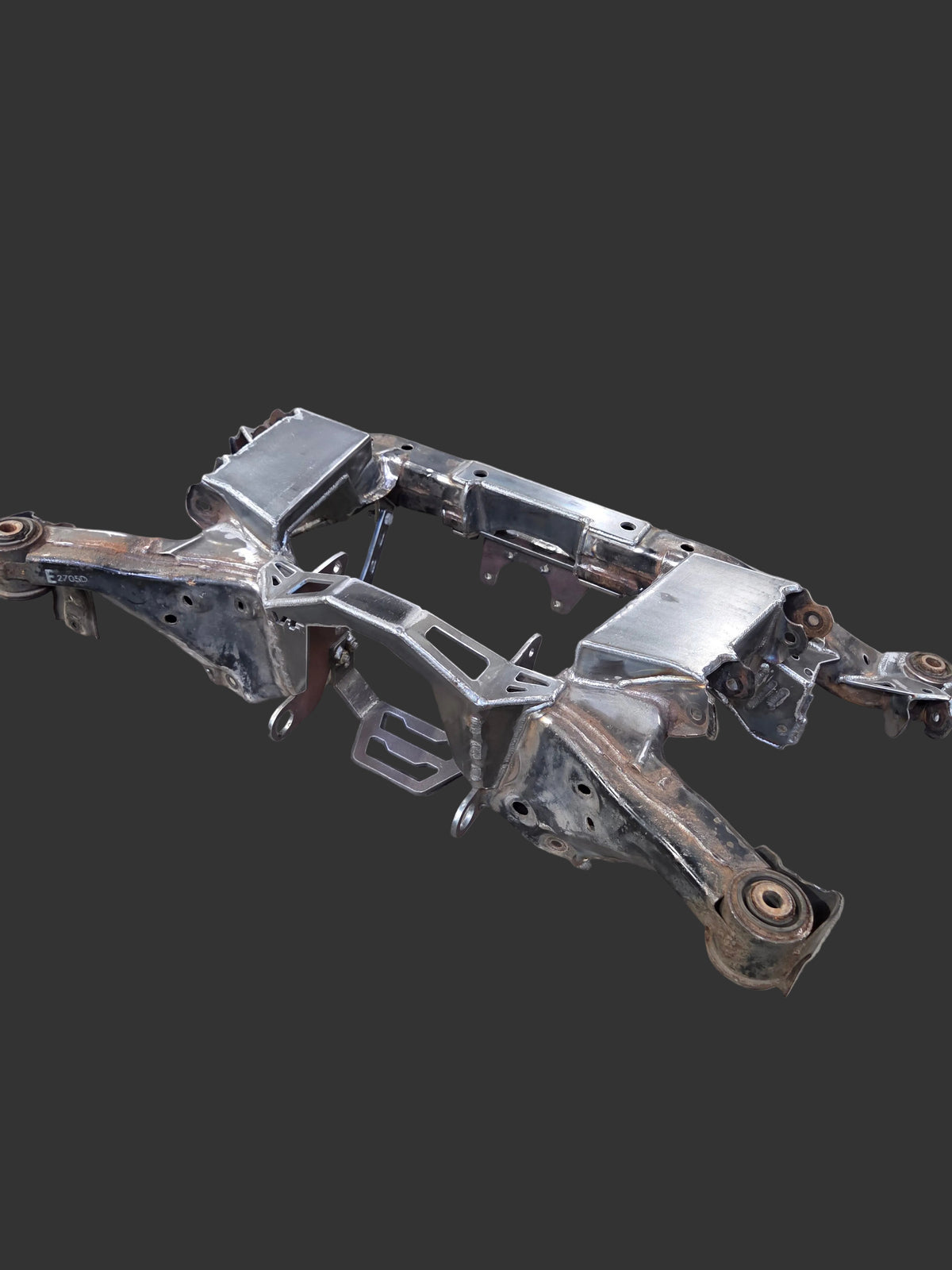

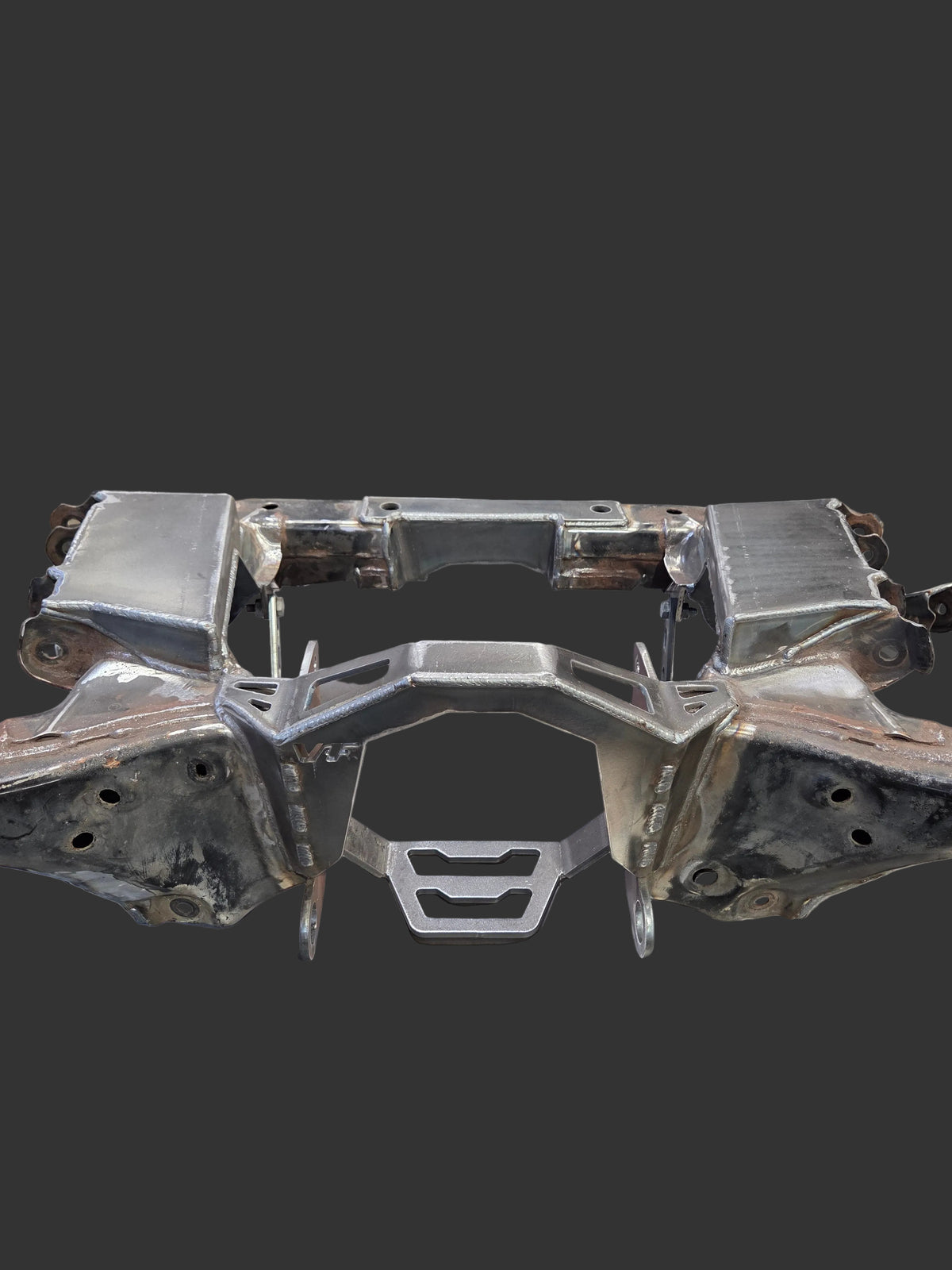

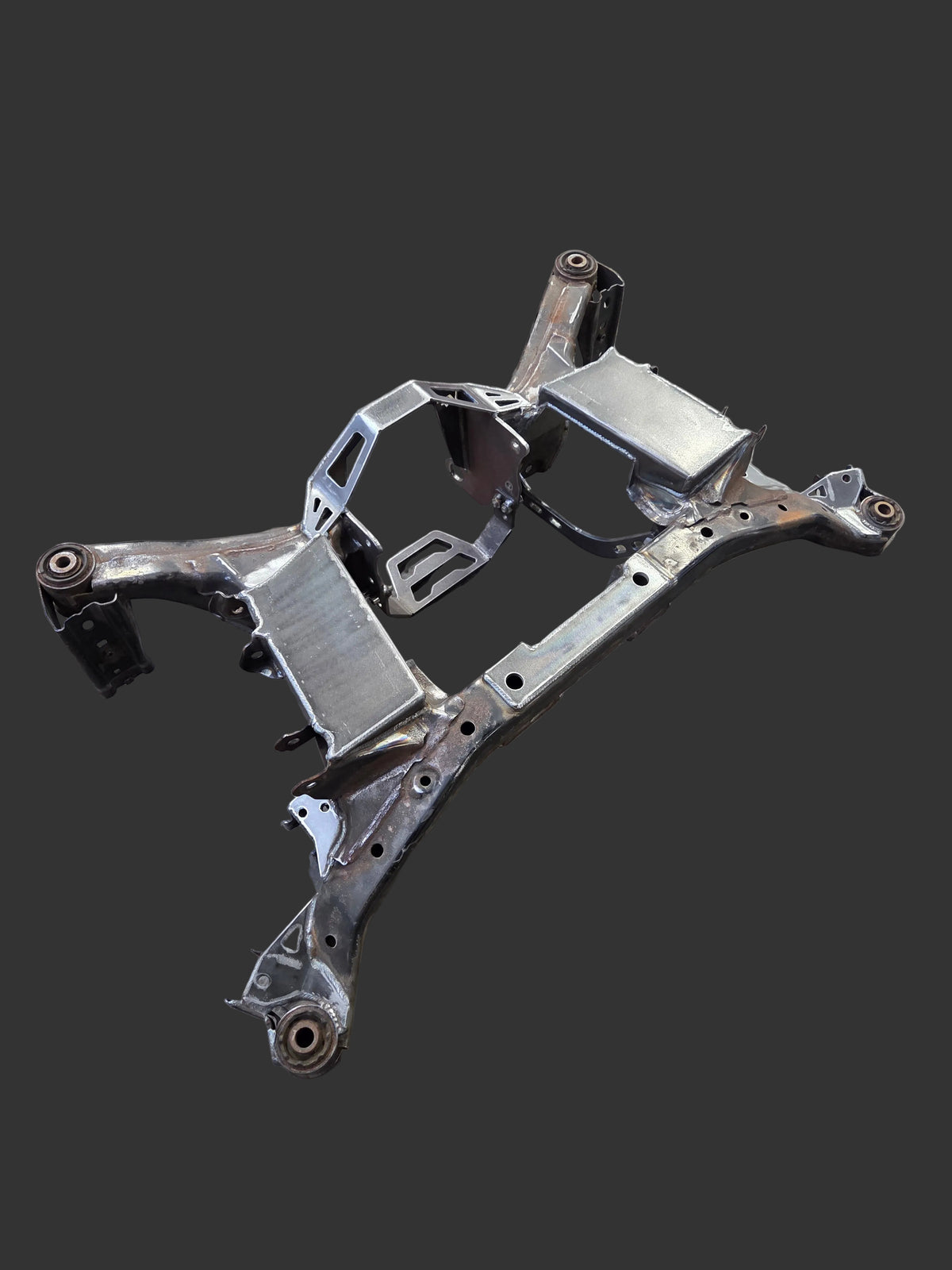

Designed in-house in collaboration with professional driver Jack Shanahan, this kit allows a quick change differential to be fitted into the factory GT86 / FRS / BRZ rear subframe.

The kit has been extensively refined over the past year, with continuous development focused on strengthening known weak points. This process, carried out in collaboration with Jack, has resulted in a proven and reliable solution. It also represents the first kit of its kind currently available on the market.

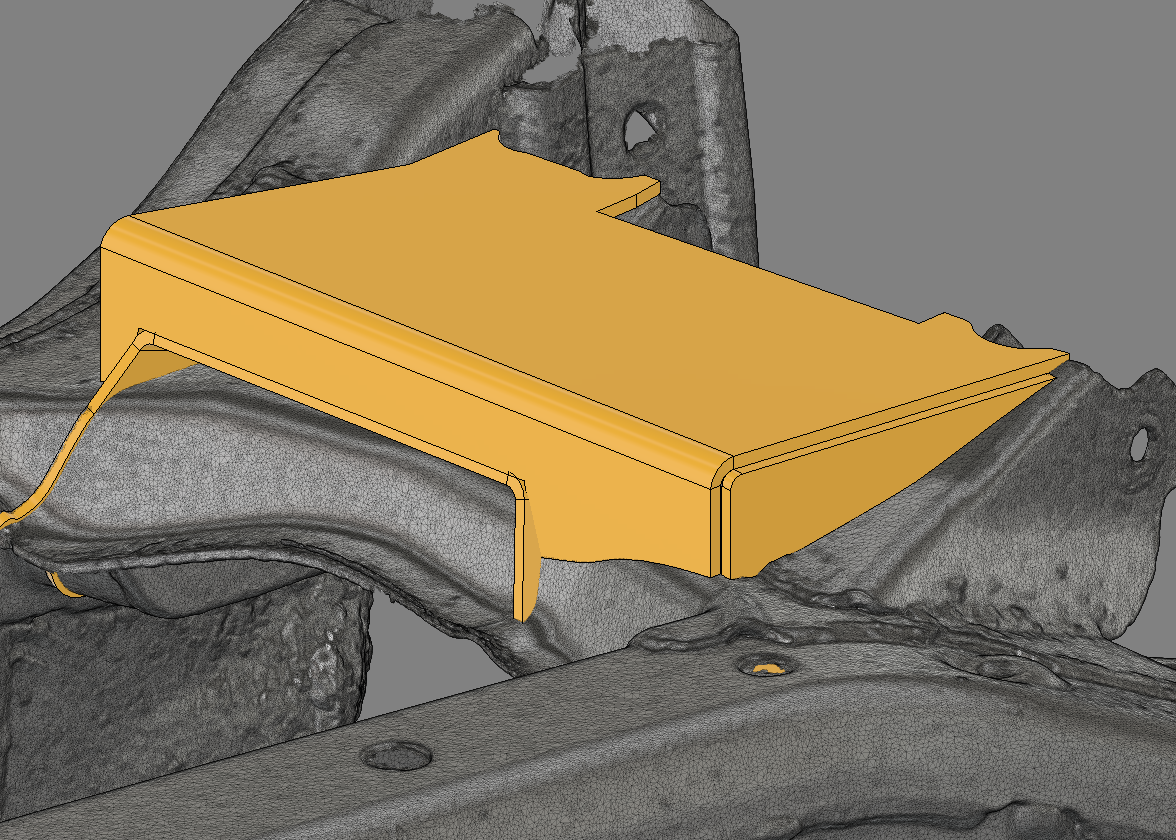

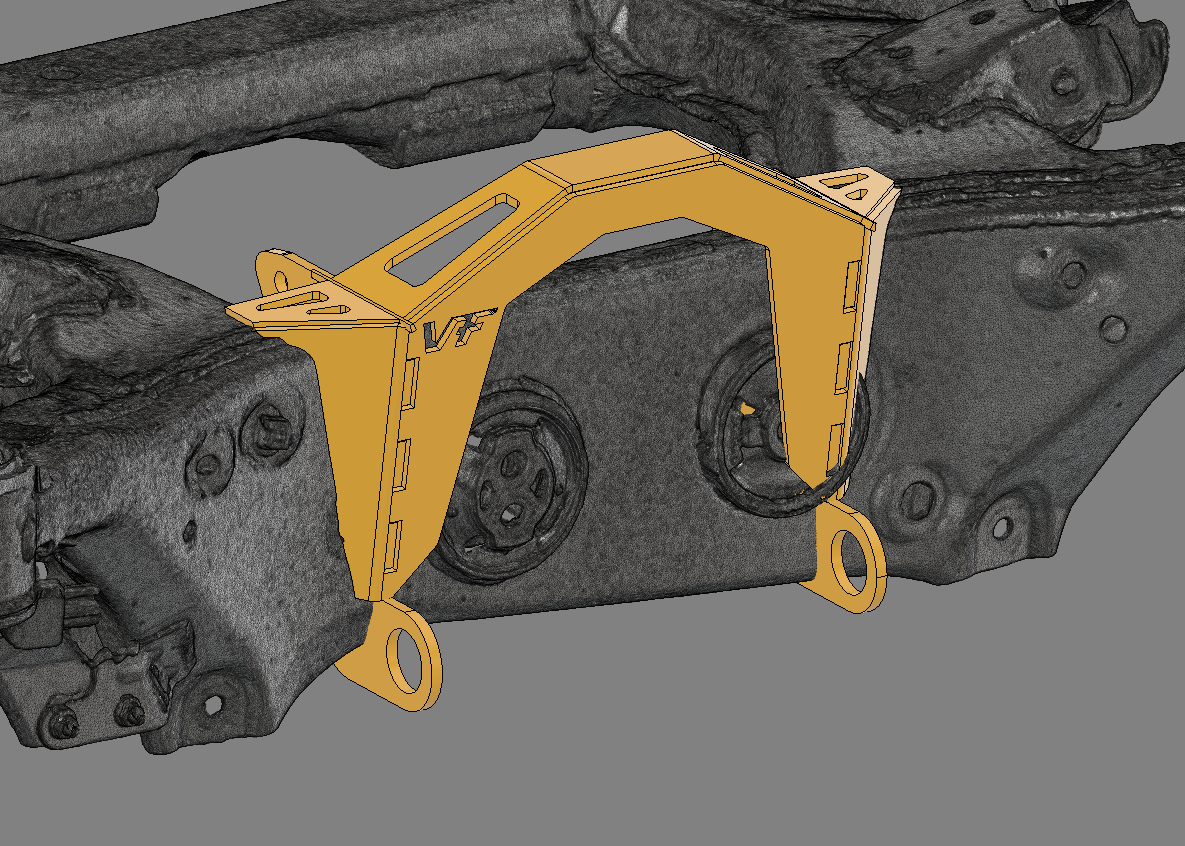

Developed using 3D scanning and CAD design, this kit is engineered for accurate fitment while retaining strength in key load areas. All components are manufactured from 6mm and 4mm steel, making the system well suited to drift, track, and other high-load applications.

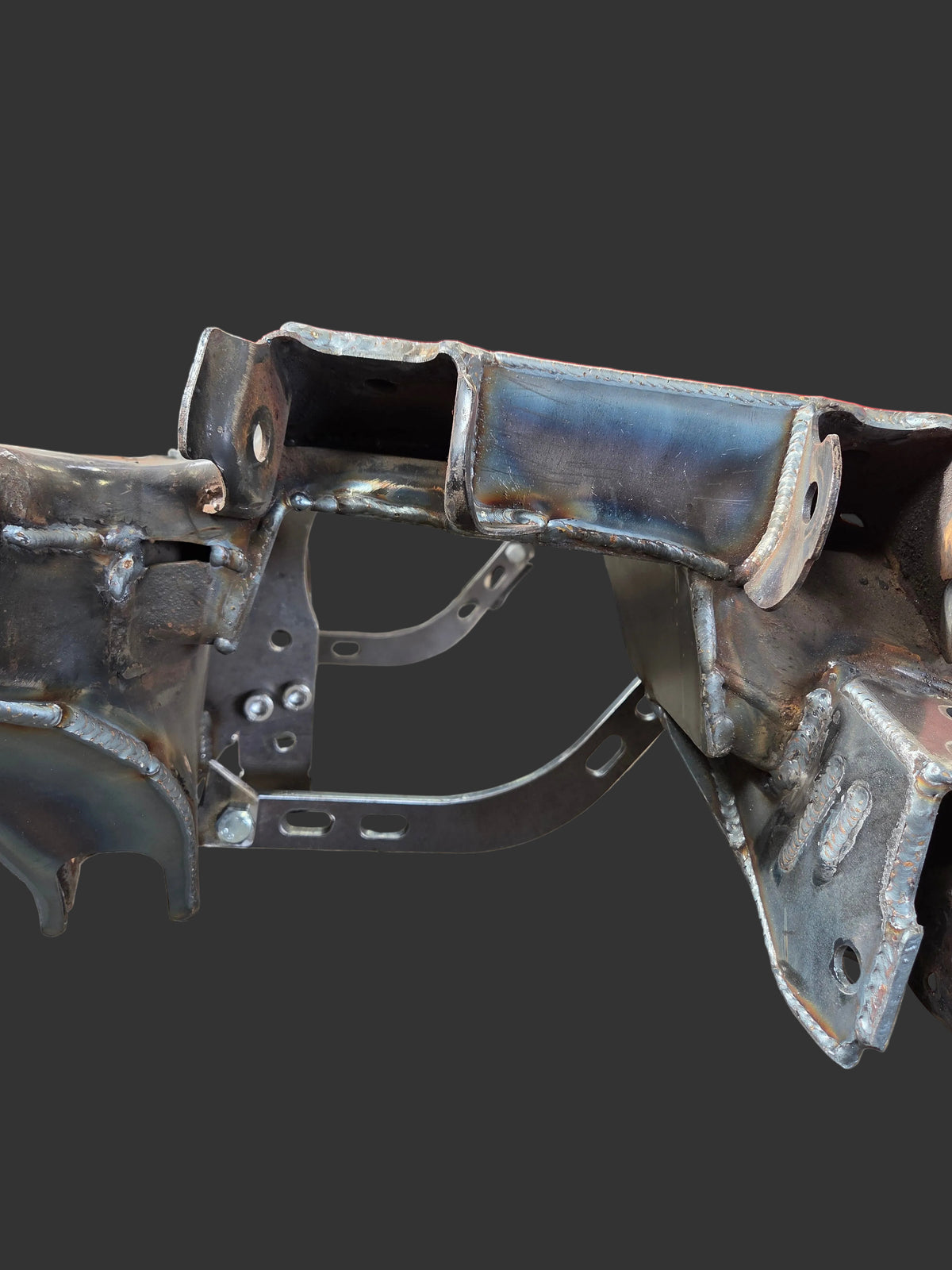

To provide the necessary axle clearance, the OEM rear subframe requires modification. For accurate and repeatable installation, the kit includes 1.2mm steel cutting templates to clearly indicate where the subframe must be trimmed.

Important Installation Note:
Due to the amount of material removed from the rear subframe, it must be properly braced before any cutting is carried out. This should be done using either a purpose-made jig or suitable weld-in bracing to maintain correct alignment and structural accuracy throughout the process.

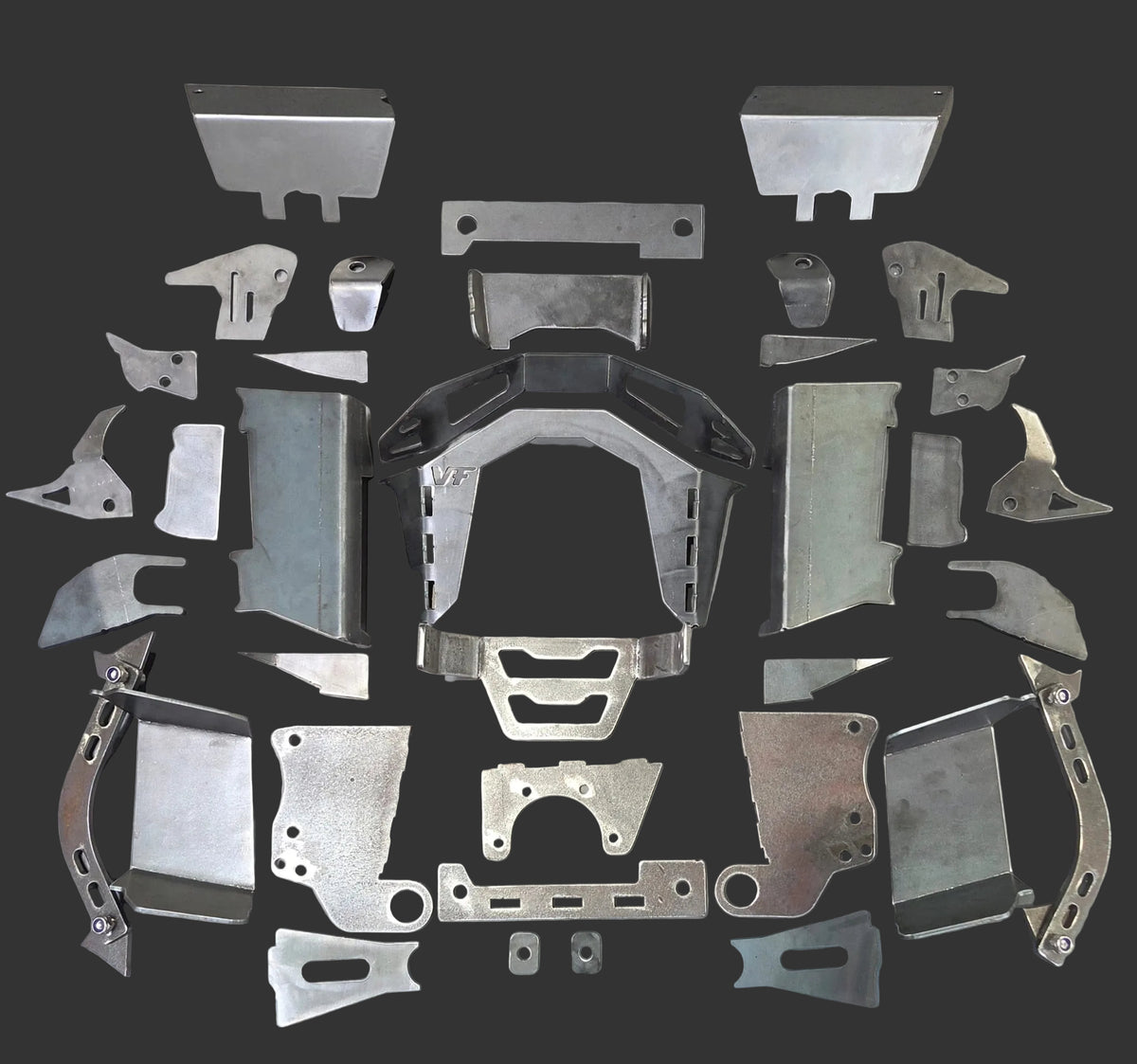

WHAT’S INCLUDED:

quick change mount kit:(x18 components)

x2 6mm differential side mount plates

x1 6mm differential nose mount plate (welded)

x1 4mm rear crossover plate

x1 4mm top crossover plate

x2  4mm top suspension point brackets

x6 4mm top suspension point gussets (front+back)(left+right)

x2 4mm axle clearence inserts

x1 4mm front bell clearence plate gusset

x1 4mm bell clearence insert plate

x2 axle clearance templates

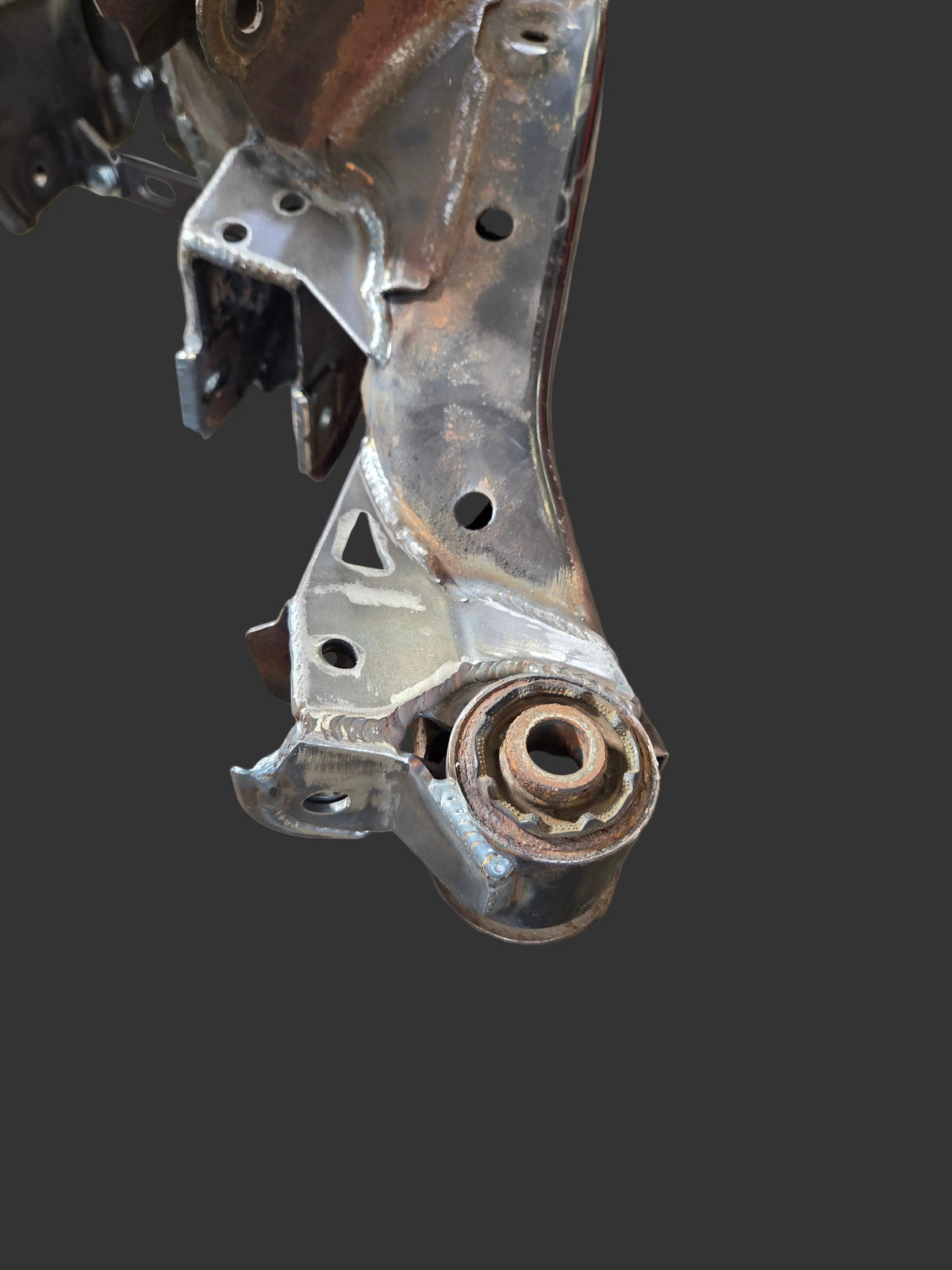

reinforcement kit: (x20 components)

x2 4mm front LCA mount top plates

x2 4mm front LCA mount side plates

x2 4mm lower track arm mount side plates

x2 4mm lower track arm mount top plates

x2 4mm lower track arm mount bottom gusset

x2 spherical washer delete plates

x2 4mm rear tow point gusset

x4 6mm bottom subframe brace mounts

x2 6mm bottom subframe brace boomerangs

installation manual:
Each kit includes a comprehensive, step-by-step installation guide, designed to make the process straight forward and achievable for users of all experience levels.
